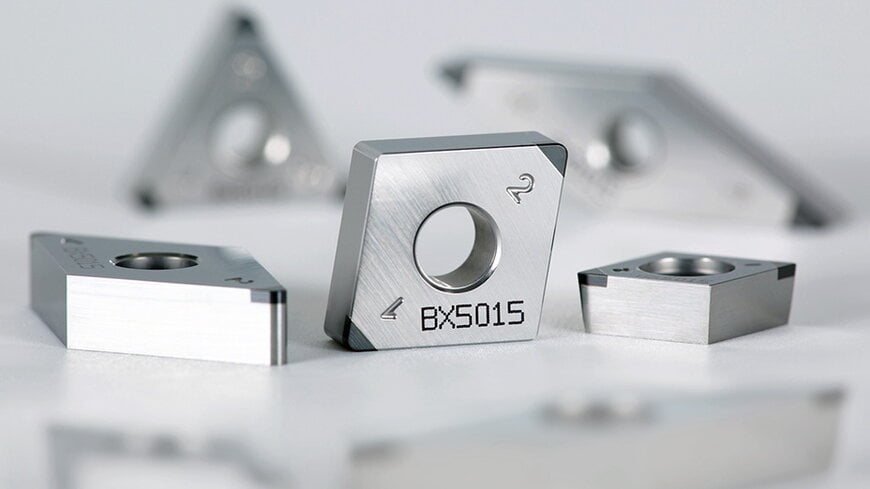

Low-Speed Turning Inserts for Gray Cast Iron Machining

Gray cast iron is widely utilized in the manufacturing of automotive and agricultural machinery components, such as oil pump housings and flywheel housings. Large or irregularly shaped workpieces often present structural limitations that restrict chuck clamping strength, making high-speed rotation unfeasible. Consequently, manufacturers must rely on low-speed turning.

Conventional cubic boron nitride (CBN) grades are typically optimized for high-speed thermal conditions and suffer from accelerated wear and premature micro-chipping when operated at lower cutting speeds. To address this specific degradation mechanism, the BX5015 grade utilizes a specialized binder matrix designed to exhibit high heat and oxidation resistance. This chemical composition suppresses phase transformation and binder wear at the lower thermal energy levels characteristic of reduced cutting speeds. The insert maintains its substrate hardness under continuous cutting loads, ensuring tight dimensional tolerances over extended production cycles.

Edge Toughness and Interrupted Cutting Performance
Machining components with irregular geometry requires cutting tools capable of enduring cyclic mechanical shocks. The BX5015 grade features a microstructure composed of uniformly dispersed, fine-grained CBN particles. This grain distribution provides a high-toughness cutting edge that distributes mechanical loads evenly across the tool geometry.

The reinforced edge structure prevents micro-chipping during interrupted cuts and when machining through casting crusts or cross-holes. By mitigating sudden edge failure, the microstructure provides predictable wear behavior. Production data indicates that the wear resistance and edge toughness of this grade can double the operational tool life compared to standard market alternatives when applied to asymmetric workpieces with restricted cutting velocities. The expanded lineup includes 25 distinct insert items to accommodate varied tool holders and geometry requirements.




Additional Context: Technical Specifications and Competitive Benchmarking
In industrial cast iron turning, standard ISO P, M, and K carbide inserts often fail rapidly due to the abrasive nature of the graphite flakes and pearlite matrix, prompting the use of CBN (ISO K class). While established premium grades from manufacturers like Sandvik Coromant (CB7015 series) and Sumitomo Electric (BNC series) dominate high-speed finishing operations between 500 m/min and 1500 m/min, they experience adhesion and micro-chipping below 300 m/min.

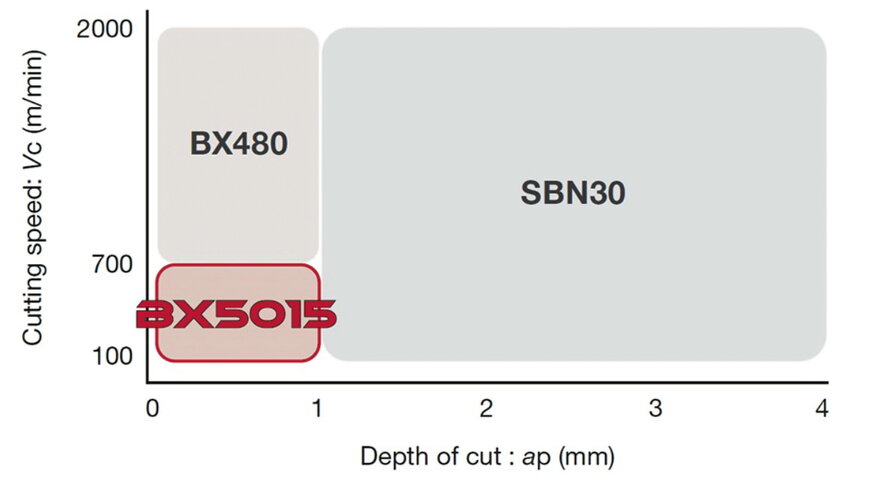

The BX5015 grade specifically targets the low-to-medium velocity gap 150 m/min to 350 m/min. By increasing the volume fraction of fine CBN grains and combining them with a chemically inert ceramic binder, the insert achieves a balance between the extreme hardness of high-content CBN grades (typically used for roughing) and the crater wear resistance of low-content CBN grades (typically used for finishing). This specific microstructure optimizes performance where low surface footage prevents the thermal softening of the workpiece material, a condition that usually accelerates the mechanical abrasion of conventional cutting edges.

Edited by Evgeny Churilov, Induportals Media - Adapted by AI.

www.tungaloy.com
