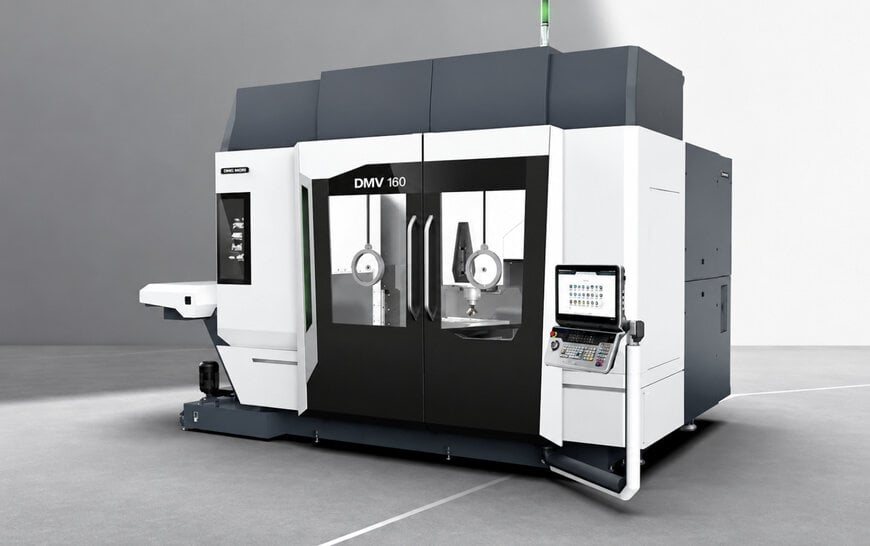

DMGMORI Expands Vertical Machining Portfolio With DMV160

The DMV160 features a monolithic machine frame constructed with solid cast components and roller guideways across all axes. The structural configuration supports a maximum table load of 2,200 kilograms within travel dimensions of 1,600 by 700 by 550 millimeters. Direct drives in all axes combined with direct path measuring systems achieve a positioning accuracy of 4 micrometers and a feed rate of 42 meters per minute. Thermal stability during extended operational cycles is maintained via an active cooling system applied to selected machine components.

Spindle Configurations and Tool Management
Spindle options comprise the inlineMASTER at 15,000 revolutions per minute, the speedMASTER at 15,000 revolutions per minute with high torque and 20,000 revolutions per minute variants, and the powerMASTER delivering 430 newton-meters of torque for heavy-duty machining of stainless steel and titanium alloys. All spindles feature a BIG-PLUS interface and a 36-month warranty. The standard tool magazine accommodates 30 tools with an SK40 interface, expandable to a maximum capacity of 120 pockets.

Digital Integration and Automation Systems
Machining Transformation integration is driven by CELOS X operating on a 24-inch ERGOline X control panel, supporting network connectivity within the digital supply chain. Control and programming interfaces are available via Sinumerik ONE or HEIDENHAIN TNC 7 systems. Autonomous operation is facilitated through compatibility with pallet handling systems including the PH 150, PH Cell 300, and PH Cell Twin, alongside Robo2Go Milling workpiece handling and integration with driverless transport systems such as the PH-AMR 750.

Additional Context:
This section details technical specifications and competitive benchmarking not included in the original product announcement

The DMG MORI DMV160 competes directly with large-envelope 3-axis vertical machining centers such as the Mazak VTC series and the Haas VF-11/VF-12 platforms. While standard vertical mills in this size class often rely on standard linear guide arrangements and belt-driven spindles, the DMV160 utilizes a monolithic cast bed paired with direct drives to sustain a 42 meters per minute feed rate and a 4 micrometer positioning tolerance under heavy table loads up to 2,200 kilograms. The integration of the powerMASTER spindle delivering 430 newton-meters provides superior material removal rates in difficult-to-machine aerospace alloys compared to standard 15,000 revolutions per minute utility spindles typically found in mid-tier competitors. Furthermore, native factory compatibility with automated guided vehicles like the PH-AMR 750 and modular pallet cells positions the machine for lights-out manufacturing environments without requiring bespoke third-party robotic integration cells.

Edited by Sucithra Mani, Induportals editor – adapted by AI.
