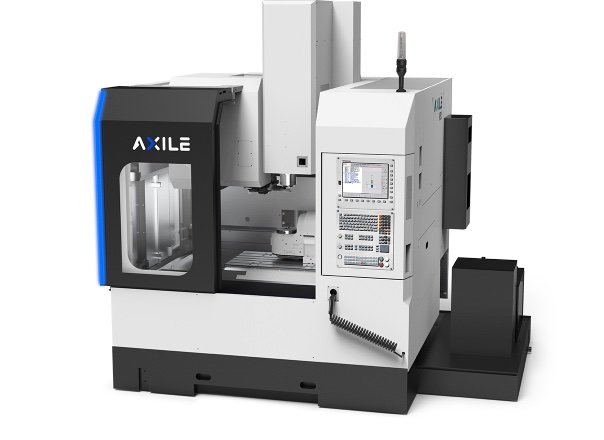

V5X Graphite
C TYPE VMC.
Compact footprint with graphite milling capabilities
With a 170 mm rotary table and rigid Z-axis, the space-saving V5X Metal is ideal for milling smaller metal workpieces with intricate features in fewer setups. The combination of high-speed spindle, high feed rate, and arm-type automatic tool changer (with capacity for 32 tools) makes the V5X Metal a versatile addition to any production line.
The V5X Metal performs wet cuts with a wide selection of spindle and lubrication options. In-line and built-in spindles are available, providing an assortment of speeds catering to your preferred machining style.
In addition, the V5X Metal can also be complemented with our proprietary loader system, which offers a maximum capacity of 84 workpieces of up to 100 mm X 100 mm X 100 mm in size, and an 8 kg maximum loading weight.
Features
- High-precision contour machining
- Arm type ATC with 32 tools
- Two rotary axes with torque motors
- Dust collector on top of the spindle to optimize dust suction
- Option: Automated loader system
Specifications
- Rotary table diameter: 170 mm
- Max table load: 30 kg
- Max X, Y, Z axis travel: 600 mm, 500 mm, 435 mm
- Graphite machining spindle speed: 25,000 rpm
- Compatible CNC controllers: Fanuc, Heidenhain, Siemens
Standard Accessories
Spindle
- Built-in transmission spindle with CTS
- Max. speed 25,000 rpm
Equipment and Components
- Telescopic covers on three linear axes
- LED indicator of cycle finish with three colored lamps
- Dust suction hole
- Roller type linear guideway
- 32 tools arm type ATC
Cooling System
- Air conditioner
- Water cooler for spindle
