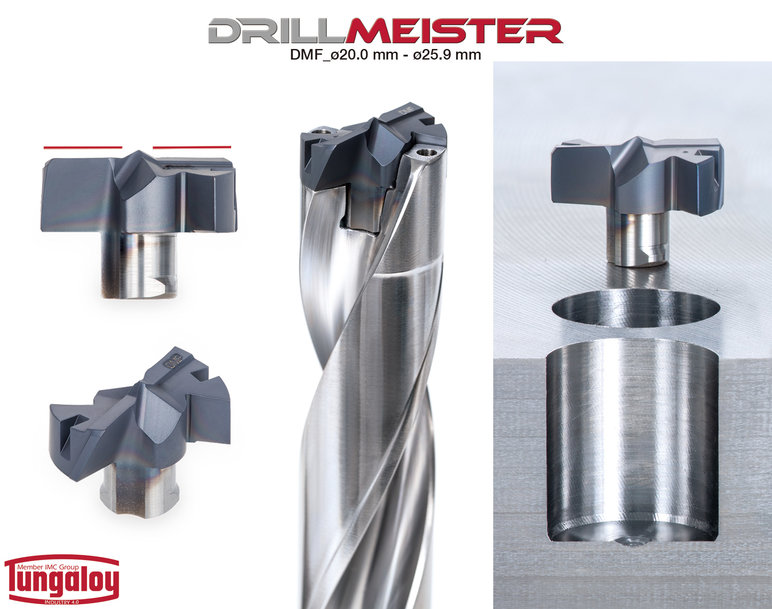

DRILLMEISTER EXPANDS ITS DIAMETER RANGE FOR FLAT BOTTOM HOLE DRILLING

DrillMeister is a super productive, accurate, and cost efficient exchangeable-head drill series. Its DMF counterboring drill head line now includes diameters from 20.0 mm to 25.9 mm, increasing the entire standard range from 6.0 mm to 25.9 mm (from .236″ to 1.020″).

Optimized for counterboring, the DMF drill heads features 180 degree flat edges with a self-centering edge in the center for easy and stable drill penetration. This design does more than just counterboring or making flat bottom holes; it provides excellent hole quality for holes of up to 8xD depth, while eliminating the need for pilot holes. The flat-edged drill tip geometry helps facilitate and stabilize drill entries and exits when the part surfaces are irregular such as inclined, uneven, or curved. Furthermore, thanks to the exchangeable head system, the drill eliminates the need for regrinding and reconditioning of the intricate drill heads, thus not only provides process security but also reduces manufacturing costs.
