All-inclusive package for end machining
GABO STAHL, Mössner, and MAPAL have partnered to benefit each other in the end machining of round steel, leveraging an automated solution from Mössner and MAPAL tools.
GABO STAHL’s portfolio includes round steel bars in dimensions ranging from nine millimetres to six metres.Sawn round steel bars with lengths of nine millimetres are just as much a part of GABO STAHL's portfolio as round steel bars with a length of six metres. There is a large customer base, and the products are used for a wide range of applications – from use in electrical and hydraulic parts production to large bolts for wind turbines. GABO STAHL is not only a steel trader, but also a steel processor. The company based in Essingen near Aalen was looking for the right system to machine the ends of all round steel bars with a diameter of 30 to 100 mm and a length of 300 to 2000 mm. As GABO STAHL CEO Thorsten Maier points out: “We like to supply our customers with the primary material ready for use and undertake as much preparatory work as possible.”
At GABO STAHL, these products are not usually manufactured in large series. Business is mainly dominated by small series. “Our production equipment has to be able to work just as flexibly as we do,” explains Maier. The problem with this is that “Although we perform machining tasks for our customers, we don’t have any trained machinists working for us.” Therefore, in addition to the requirement for flexibility in terms of different dimensions and steel grades, there is also a need for the simplest possible operation.

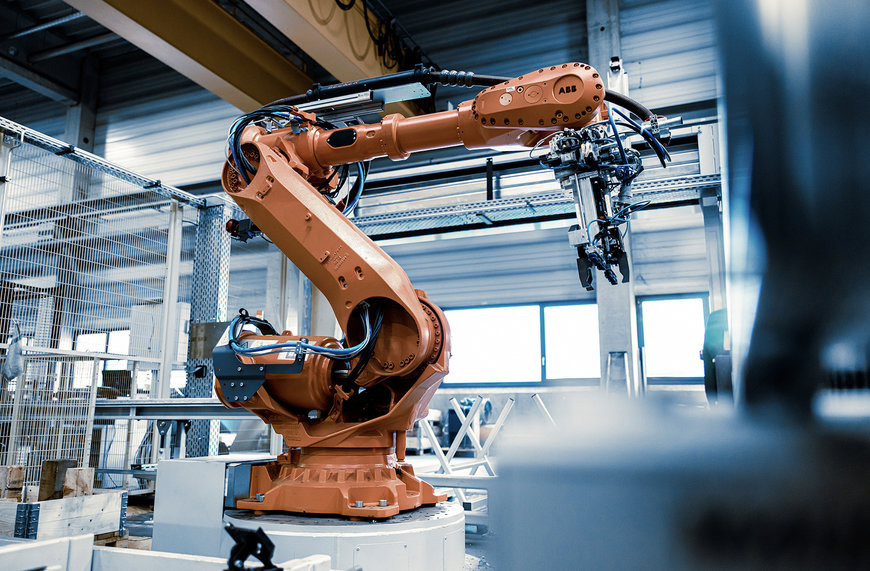

Round steel bars with a diameter of 30 to 100 mm and a length of 300 to 2,000 mm are machined on the system from Mössner. A robot is in charge of loading and unloading the system.
Working together as equals
“That’s a typical case for us”, says Markus Fuchs, Purchasing Manager at Mössner. The machine manufacturer is also based in the greater Aalen area. Mössner is a specialist in the field of automated special-purpose machinery. Customised solutions are an area that MAPAL is also familiar with. “MAPAL is our go-to partner, we work closely together and receive quick, straightforward support, also thanks to our geographic proximity”, explains Fuchs. The machine experts at Mössner often get in touch with the specialists at MAPAL as early on as the concept creation phase for the customer.

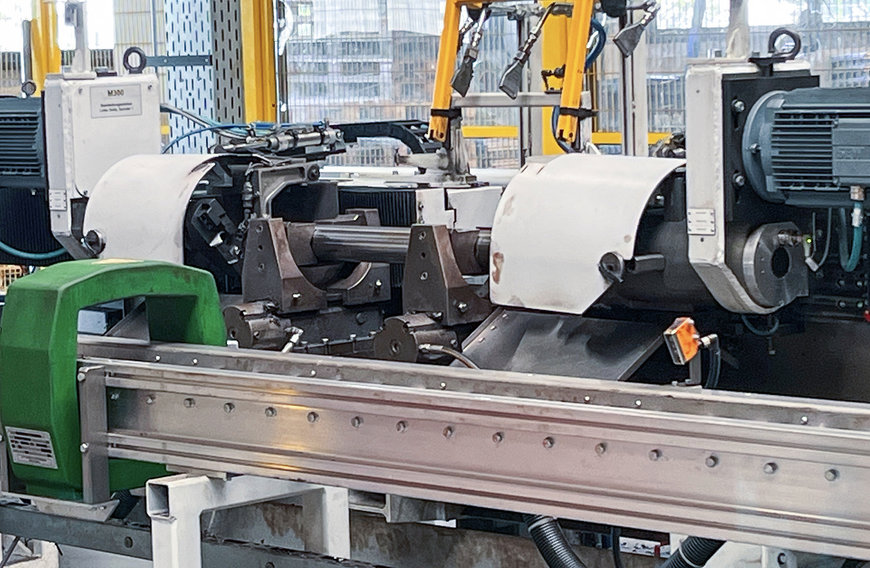

The round steel bars are machined on both sides at the same time.
MAPAL and Mössner worked together closely for around eight weeks on the system that is now installed at GABO STAHL. Marc Wagner, Technical Consultant at MAPAL, recalls: “The tool for facing, chamfering and centre drilling different types of steel and diameters was a major challenge.” The various steel grades were the main source of development work. The engineering steels and tempering steels to be machined are usually specified by GABO STAHL's customers in terms of chemical composition and mechanical values.

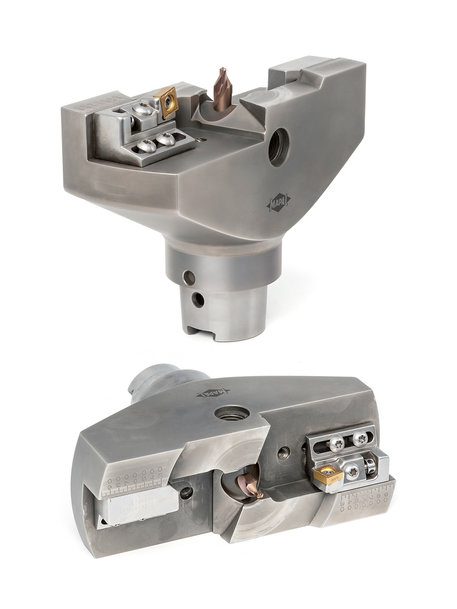

MAPAL has developed a milling tool with cartridges and a centre drill which reliably machines the many different workpiece materials and workpieces with the same coated indexable insert. Different centre drills made of coated solid carbide in various diameters can be clamped using easy-to-operate clamping sleeves.
“We get everyone round the table, work things out, think creatively and find joint solutions,” Fuchs describes the development process. “Once the right tool has been found and designed, we build the rest of the machine around it.” After all, the tool is at the centre of the system.
The team found the optimum solution with a milling tool with cartridges and a centre drill. “We are able to reliably machine the many different workpiece materials and workpieces with the same coated indexable insert”, Alexander Schulze, Application Engineer at MAPAL, is pleased to report. The cartridges can be used to quickly and easily set different diameters for the chamfer on the workpiece. This requires no specialist knowledge and can be easily done after a short briefing. Different centre drills made of coated solid carbide in various diameters are clamped into the tool itself using easy-to-operate clamping sleeves. Here, the solution lay in the special geometry. “We’ve developed a tool that precisely performs both chamfering and facing as well as centring”, says Schulze. And not just on one side of the round steel bar, but on the other side at the same time with a similar tool.

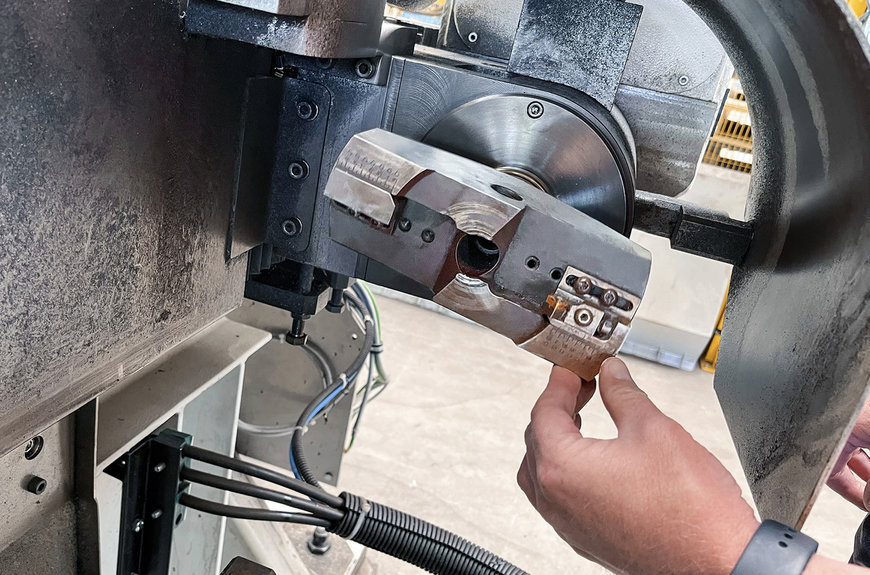

Staff at GABO STAHL can use the cartridges on the tool to quickly and easily set different diameters for the chamfer on the workpiece.
Assured high quality in a significantly shorter time
“The system from Mössner is a great asset for us”, says Thorsten Maier. Before production started with the new machine, all machining operations were performed by hand. GABO STAHL thus not only saves a huge amount of time with machining, but also ensures the consistently high quality of the machined ends. And: “The system also saws, measures, marks, demagnetises and packs the workpieces”, says Maier. An all-inclusive package supplied by Mössner and MAPAL. The staff who work with the machine every day are also impressed by how easy it is to use and by the ability to switch over to new components quickly and straightforwardly.
Happy about the successful project (from left): Marc Wagner (Technical Consultant MAPAL), Thorsten Maier (CEO GABO STAHL), Alexander Schulze (Application Engineer MAPAL) and Markus Fuchs (Purchasing Manager Mössner)
The smooth running of this joint project at GABO STAHL is no accident. “We work successfully with Mössner not only here in Baden-Württemberg, but all over the world”, explains Marc Wagner. For example in Mexico, where many car manufacturers and suppliers operate plants and rely on the combined solutions of both companies. MAPAL has already designed a separate tool range for Mössner, which is specifically tailored to the manufacturer’s machines. And so further joint projects are already in the pipeline including in sectors other than the automotive industry.

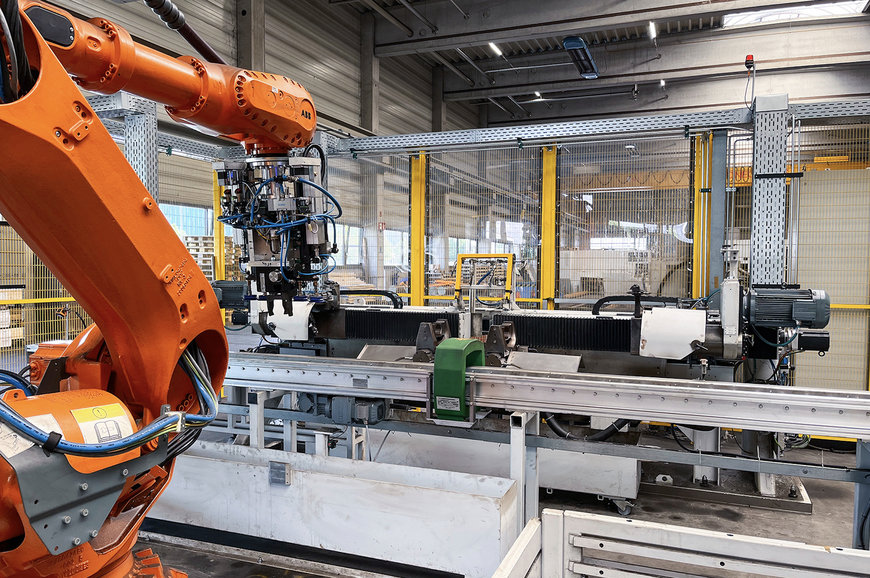

The system from Mössner is an all-inclusive package for GABO STAHL. In addition to machining, it also saws, measures, marks, demagnetises and packs the workpieces.
