MillQuadFeed: Expanding the Range of Flat-Top Inserts with Superior Chipping Resistance

The new inserts come in two variations: the Z-type for versatile use and the U-type for small entry angles, offering improved durability and stable performance in challenging machining environments, such as interrupted cutting and machining of hardened materials.

Challenges and Trends
In recent years, manufacturers involved in the machining of hot forging dies, large plastic molds, and die-casting molds have been facing increasingly challenging market conditions. Particularly, during pocketing and roughing processes on workpieces where cooling holes have been pre-machined, interrupted cutting tends to occur, placing significant stress on the tools. Additionally, reworking the surfaces of forging dies for reuse requires stable machining of nitrided or work-hardened surfaces, which have become harder, further increasing the demands on the tools. To achieve stable machining under such harsh conditions, tools with high chipping resistance and superior edge strength are required. Specifically, there is a growing demand for inserts that combine high cutting performance and stability, while minimizing chipping and breakage. As a result, users are increasingly turning to high-feed cutters with heightened expectations.

Product Overview
MillQuadFeed is a cutting tool that combines low cutting resistance with high rigidity through its hybrid design, delivering exceptional reliability even in heavy-duty machining. It features a unique insert geometry that reduces cutting resistance by up to 20%, enhancing machining efficiency. Suitable for a wide range of applications such as shoulder milling and plunging, MillQuadFeed also offers double the tool life compared to conventional tools.

Benefits and Features

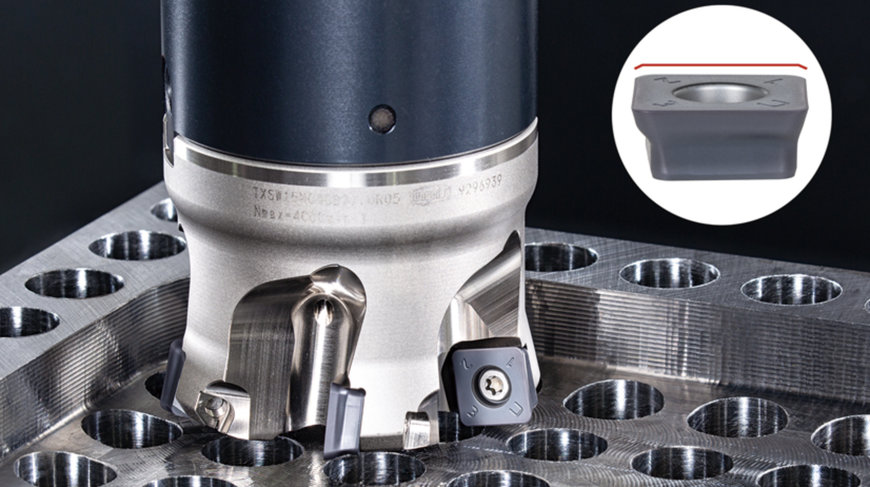

Feature 1: Superior Chipping Resistance with Flat-Top Inserts
– The flat-top design enhances the cutting edge, improving chipping resistance.
– Optimized negative land width and angle provide stable cutting performance.
– Reinforced corner radius ensures high durability, even in high-load machining environments such as pocket milling.

Feature 2: Inserts with Varying Entry Angles to Suit Different Applications
– By adopting the optimized insert concept of the MillQuadFeed series, the tool is flexible and adaptable to various machining operations.
– The Z type is suitable for machining where cutting depth is critical, achieving a cutting depth of APMX 1.5mm for the 09 size and APMX 2.5mm for the 15 size.
– The U type, with its small entry angle, excels in suppressing vibration during long overhang machining and extends tool life when machining high-hardness materials.
