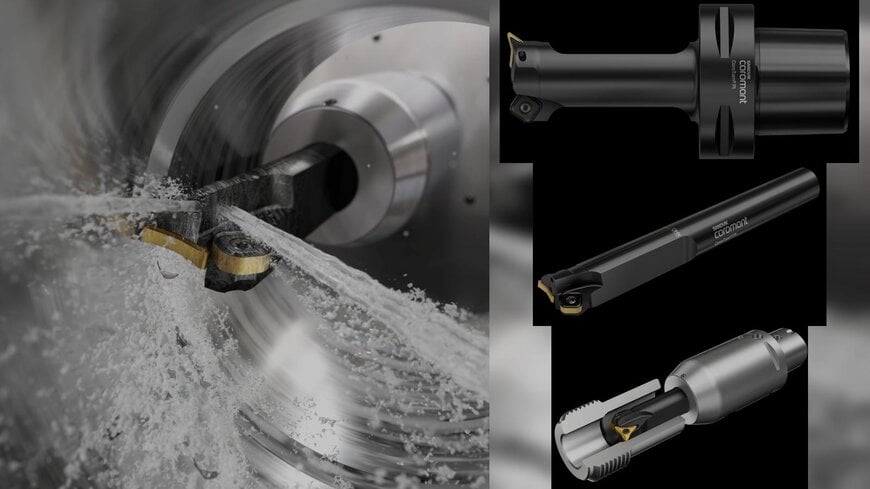

Internal Turning Tooling with Dual-Insert Architecture

Sandvik Coromant has introduced a new internal turning tool family designed to improve machining reliability and efficiency in complex components. The solution integrates dual-insert functionality, precision chip control, and multi-directional turning to support demanding applications across ISO P, ISO M, and ISO K materials.

Addressing internal turning constraints
Internal turning operations in components such as shafts, gear blanks, and hubs are associated with inherent challenges, including tool deflection, vibration, and built-up edge formation. These factors can negatively affect surface quality, dimensional accuracy, and process stability.

The CoroTurn PI tool family is engineered to mitigate these constraints through a combination of optimized chip breaker geometry and adaptable coolant delivery configurations. These features support controlled chip evacuation, even in confined internal geometries, improving machining consistency and reducing interruption risks.

Dual-insert toolholder design
A defining characteristic of the system is a toolholder with two dedicated insert seats: one configured for roughing and the other for finishing. This architecture enables both operations to be performed within a single setup, reducing tool changes and associated downtime.

By consolidating multiple machining stages into one tool, the design contributes to shorter cycle times and improved machine utilization. The roughing inserts are equipped with eight cutting edges, extending tool life and lowering cost per edge.

Multi-directional turning and chip control
The system incorporates a turning methodology based on small entering angles and the ability to machine in multiple directions. This approach enhances cutting flexibility and distributes cutting forces more evenly, which is particularly relevant in internal features where rigidity is limited.

Precision-engineered chip breakers further support stable chip formation and evacuation. Combined with optimized cutting angles, this results in smoother machining conditions and reduced risk of chip entanglement in deep or narrow cavities.

Coolant configuration and application flexibility
The tooling system includes customizable coolant supply options tailored to both blind and through-hole applications. Directed coolant flow improves heat dissipation and chip evacuation, contributing to more stable cutting conditions and extended tool performance.

This adaptability makes the system suitable for a wide range of industrial sectors, including automotive, general engineering, and heavy machinery, where internal features require consistent quality across varying geometries.

Positioning in advanced metal cutting workflows
Compared to conventional internal turning tools that require separate setups for roughing and finishing, integrated dual-insert systems offer measurable gains in efficiency and process reliability. The ability to combine operations while maintaining chip control and stability aligns with broader trends in advanced manufacturing, where reducing cycle time and variability is critical.

By combining toolholder innovation, chip control engineering, and flexible machining strategies, the CoroTurn PI platform supports more predictable and efficient internal turning processes in high-precision manufacturing environments.
