CAD/CAM Software Advances NC Programming Reliability

Manufacturing software vendors are increasingly focusing on digital machining workflows that reduce manual intervention while improving simulation accuracy and collision avoidance in complex part production. OPEN MIND’s hyperMILL 2026 CAD/CAM release expands support for additional tooling configurations, automated machining strategies, and improved turning and EDM programming workflows for precision manufacturing sectors.

NC Programming and Virtual Machining Integration

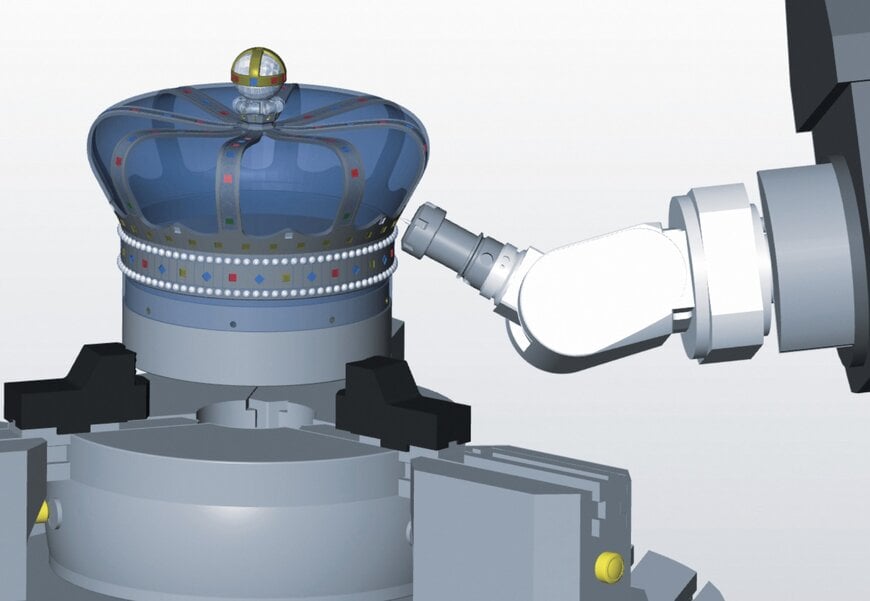

The updated software introduces native support for angle heads within CAM programming and NC code-based simulation. In practical terms, this allows angle heads to be defined as part of the NC tool configuration through the integrated tool-building environment, enabling consistent treatment across toolpath generation, machining simulation, optimization, and collision checking.

This capability is relevant for manufacturers machining complex geometries where spindle access is constrained, such as aerospace structural components, mold and die tooling, and precision mechanical parts. The software simulates approach and retraction sequences for angle head operations and includes automated toolpath optimization for these machining conditions.

Curve-based approach functionality has also been added to improve access to geometrically restricted machining zones. Initial controller support is available for Siemens SINUMERIK 840D and Heidenhain environments.

Surface Finishing for Precision Manufacturing
The release adds support for 2D Hale machining, also referred to as contour planing, as both a machining and simulation-supported strategy.

This method is intended for applications requiring scratch-free surface finishes, particularly sealing surfaces used in battery manufacturing, semiconductor production, and mold and die operations. In this machining mode, the spindle axis functions as a trailing axis, maintaining perpendicular tool orientation relative to the programmed contour.

The process control logic is designed to improve surface consistency where sealing integrity depends on geometric finish quality.

Automated Rest Material Machining in 3D and 5-Axis Workflows

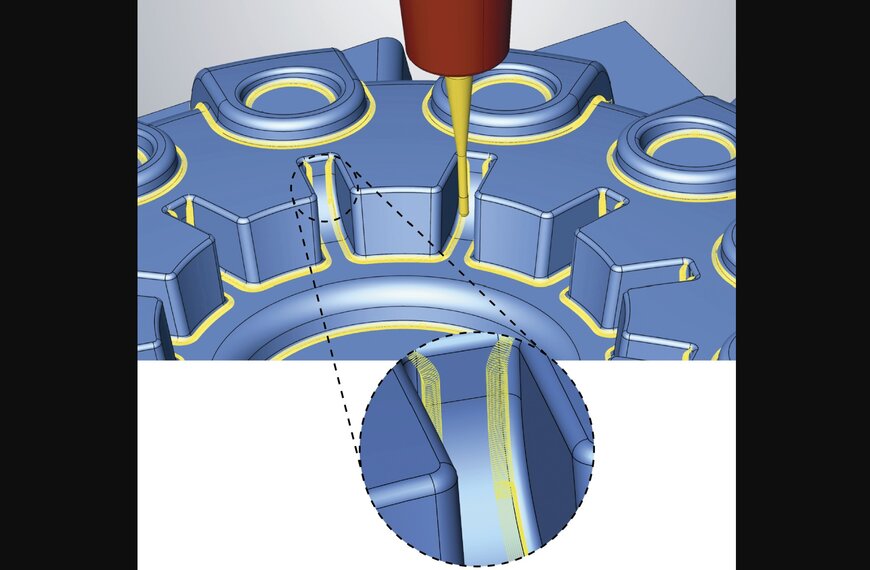

The software includes revised calculation algorithms for rest material machining in Z-level, Parallel, and Normal machining strategies.

According to OPEN MIND, these changes improve the detection and machining of residual stock material by increasing precision in identifying unmachined regions and generating more consistent toolpaths. Feed parameter compliance has also been improved, supporting more uniform machining motion.

For 3D and 5-axis machining workflows, the automation extends to entry and exit path smoothing across steep, flat, and transitional surfaces. A new minimum clearance angle parameter in 5-axis machining allows users to define the minimum separation between tool shank and workpiece geometry, improving process reliability in constrained machining scenarios.




Turning and Mill-Turn Programming Optimization
The updated turning environment includes expanded support for CAM Plan Turning, intended to reduce manual programming overhead for turned and mill-turned components.

A recurring programming limitation in turning workflows is incomplete geometry data lacking manufacturing tolerances, fits, or production-specific parameters. The updated workflow allows turning contours to be enriched with manufacturing metadata directly within the programming environment, reducing manual data transfer and associated programming errors.

Support for additional complex turret machine configurations has also been added to strengthen collision detection during turning simulation.

EDM Path Control Improvements
The hyperMILL Electrode module includes revised control logic for erosion path programming.

The updated functionality allows more flexible handling of feed and rapid motion behavior to optimize EDM toolpaths and reduce machining cycle times.

Additional Context
This section details technical specifications and competitive benchmarking not included in the original news release.

The CAD/CAM software market for advanced machining includes comparable platforms such as Autodesk PowerMill, Mastercam, Siemens NX CAM, and Dassault Systemes CATIA Machining.

A notable differentiator in OPEN MIND’s approach is NC code-based simulation through its virtual machining environment, which simulates controller-specific machine behavior rather than relying solely on CAM-level toolpath visualization. Comparable capabilities exist in Siemens NX CAM’s machine tool simulation and Autodesk PowerMill’s verification environment, where accuracy depends heavily on postprocessor integration and machine kinematic modeling.
