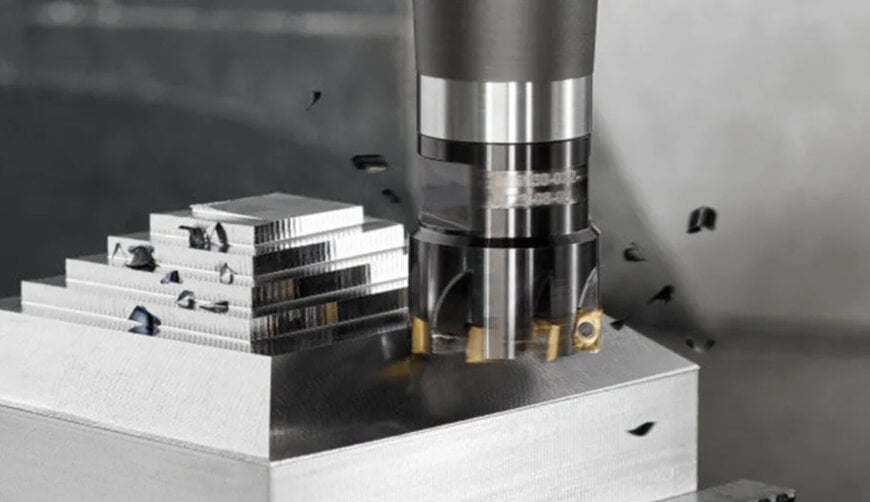

Walter Xtra·tec XT M5130 Face Milling Cutters

Walter has introduced new, larger cutter bodies to its established Xtra·tec XT M5130 milling cutter series. These tools are engineered for the high-efficiency face and shoulder milling of large surfaces with shallow depths of cut across various industrial manufacturing sectors.

Challenges in Large Surface Machining
Industrial applications increasingly demand the efficient and productive machining of large flat surfaces or stepped structures with reduced machining allowances. Achieving these results efficiently requires large tool diameters combined with a high number of teeth to maximize material removal rates and reduce overall cycle times on the shop floor without inducing excessive tool wear or machine vibration.

Expanded Tool Diameters and Insert Architecture
To address these production requirements, Walter has expanded the available diameter range of the Xtra·tec XT family. Utilizing existing indexable insert sizes designed for depths of cut below 16 mm, the newly available cutter diameters include 100, 125, and 160 mm, scaling up from the previous 80 mm limit. Furthermore, specialized cassette tools extend this maximum reach up to 315 mm in diameter. By integrating smaller cutting inserts, the design accommodates a higher number of teeth per diameter, directly translating to faster material removal over large surface areas and reduced total machining durations.

Structural Stability and Process Reliability
The new variants retain the proven structural design characteristics of the broader Xtra·tec XT milling range. Mechanical stability is achieved through a 12 percent increase in the cross-section of the indexable insert around the central mounting hole. Additionally, the insert contact surface is expanded by 34 percent, and the tooth back is reinforced by 40 percent. These architectural enhancements ensure high process reliability and stability during aggressive cutting operations. The utilization of smaller inserts not only decreases machining time but also reduces operational costs associated with cutting materials.

Material Versatility and Application Range
The M5130 cutters support a broad range of indexable inserts, including polycrystalline diamond (PCD) variants specifically engineered for aluminum machining, as well as WaveCut geometries optimized for ISO-S materials. This operational versatility enables the tools to execute face and shoulder milling, pocket milling, ramping, and circular interpolation milling. The complete cutting system is rated for processing materials across all ISO groups, including P, K, M, N, and S classifications.

Additional Context
This section details technical specifications and competitive benchmarking not included in the original product announcement

Within the industrial metal cutting market, the Walter Xtra·tec XT M5130 series competes directly with high-feed and shoulder milling platforms such as the Sandvik Coromant CoroMill 390 and the Kennametal Dodeka series. While traditional large-diameter face mills often rely on massive inserts for heavy roughing, the M5130 platform utilizes a high-density pitch design with smaller inserts to maximize the number of effective cutting edges per revolution. This architectural choice specifically targets applications requiring rapid material removal on large flat surfaces rather than deep cavity roughing, allowing manufacturers to achieve higher table feed rates and lower cost-per-edge metrics compared to conventional heavy-duty milling cutters.

Edited by Maria Brueva, Induportals editor – adapted by AI.
